Marca: WM machinery

Customizable Mop Making Machine Mop Head Forming Machine For Sale

4092,06 €2206,75 €Oferta
Model
Cantidad

Descripción

Customizable Mop Making Machine Mop Head Forming Machine For Sale

1.Product introduction of Mop Making Machine:

Mop head making machine is specialized equipment used to automatically form and assemble mop heads from cotton, microfiber, polyester, and other cleaning fibers. Depending on the model, the machine can perform processes such as fiber feeding, forming, cutting, pressing, and fixing to create consistent mop heads.

2.Technical Parameters of Mop Making Machine:

Model

WM-TB4

WM-TB10

Voltage

380V 3Phase

380V 3Phase

Fuel tank capacity

100kg

150kg

Power

1.5kw

1.5kw

Wire hole

4 holes

10 holes

Number of completions

5 times

2 times

Capacity

200pcs/h

360pcs/h

Dimension

1000*1000*1500mm

1300*1300*1700mm

Weight

380kg

500kg

Model

WM-TBS4

Mechanical combination

Pneumatic hydraulic mixing type

gas volume of pump

6 Mpa or more

operating system

7-inch color touch screen

motor power

2.2kw

pump model

VP40

oil cylinder station

2-position

air cylinder station

3-position

solenoid valve model

6 path

solenoid valve voltage

24V

Voltage

380V

Tangent work

static straight knife cutting(6-inch straight knife)

hydraulic oil

46 # antiwear hydraulic oil (about 130kg/set )

production capacity

1800-2500pieces/day(8 hours)

Overall Dimension

880*900*1700mm

Dimension of oil tank

350*500*900mm

Installation dimension

2000*920*1700mm

Contact Us to Get a Quote

Zhengzhou Wenming Machinery Co.,Ltd Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China. Office:0086-13-303-831586  Whatsapp/Wechat：+8615638141737 Email:  [email protected] You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need. Click to leave your information and requirements

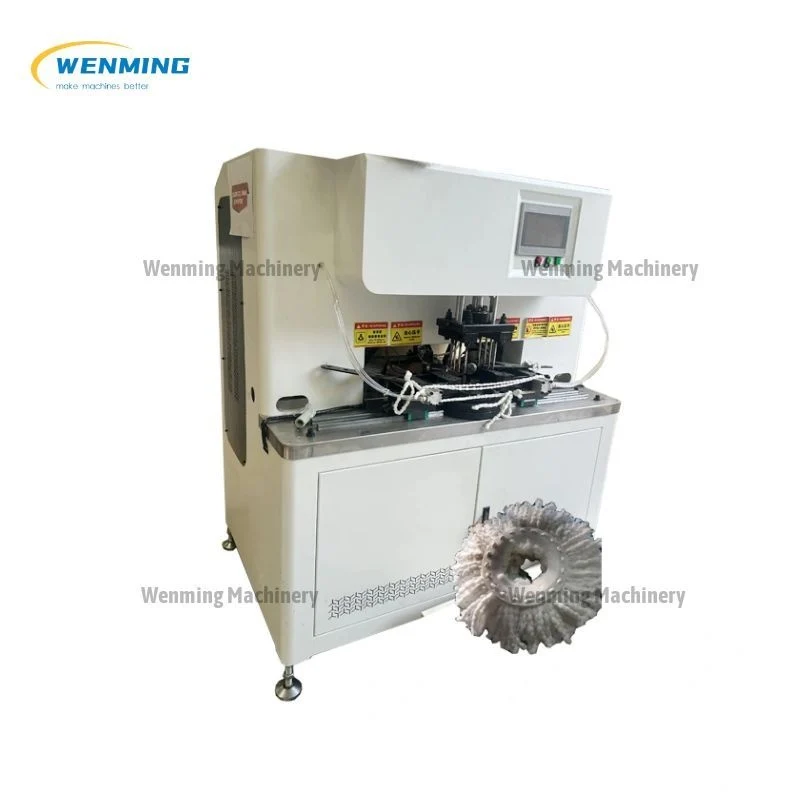

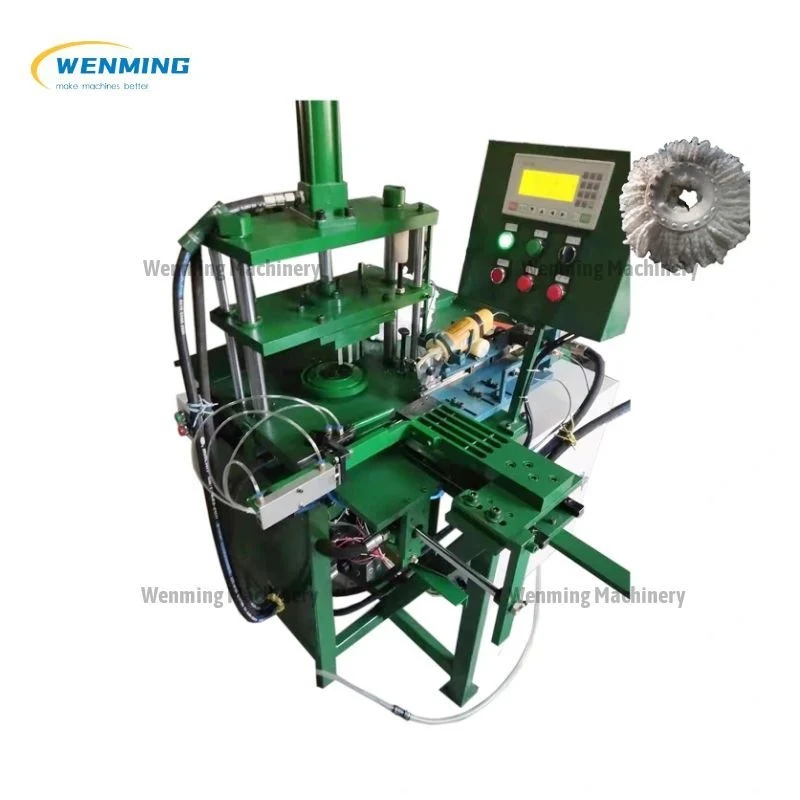

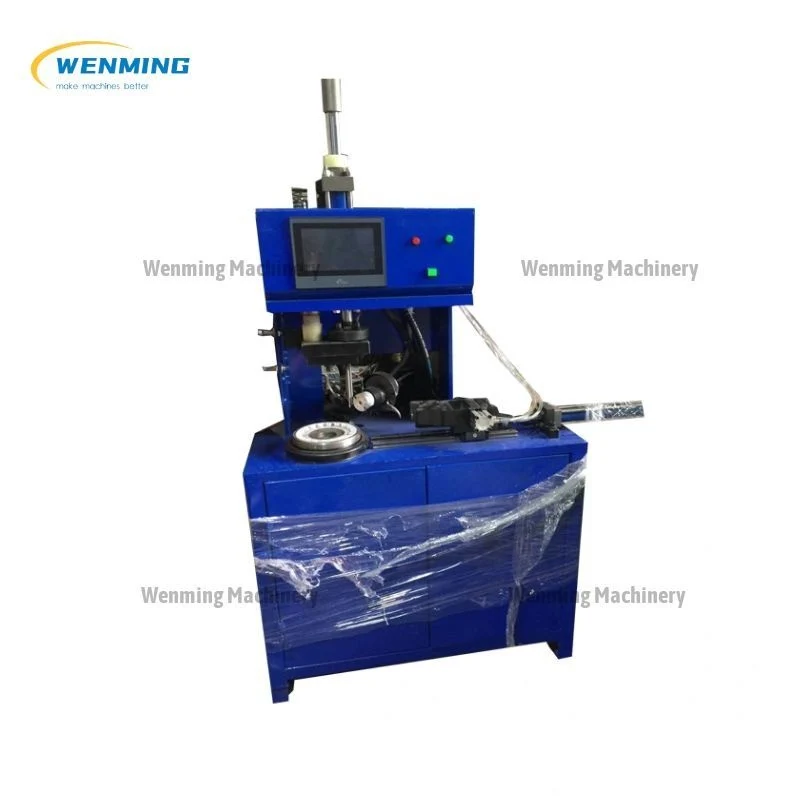

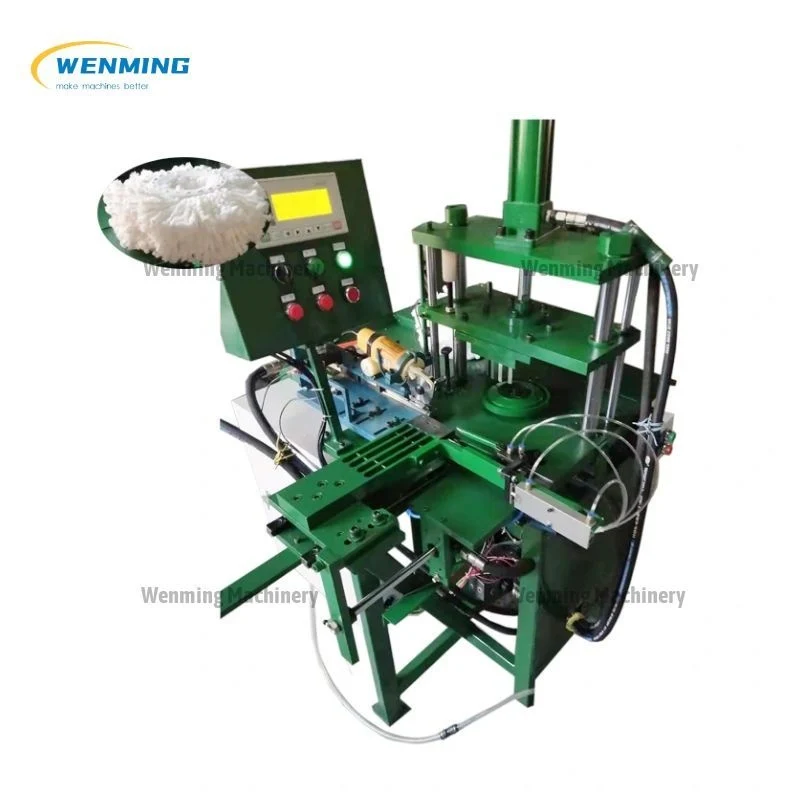

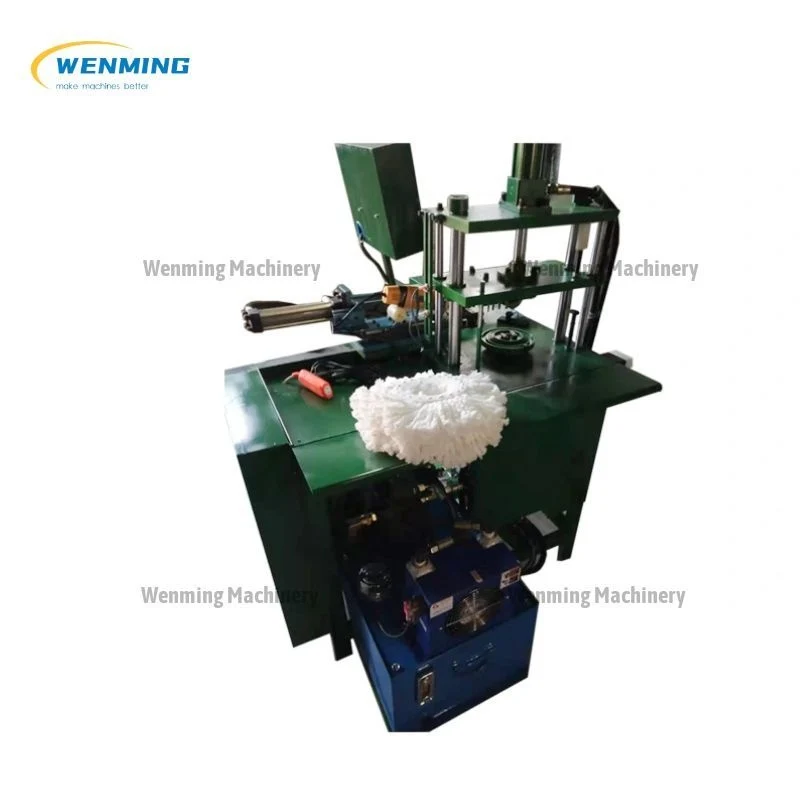

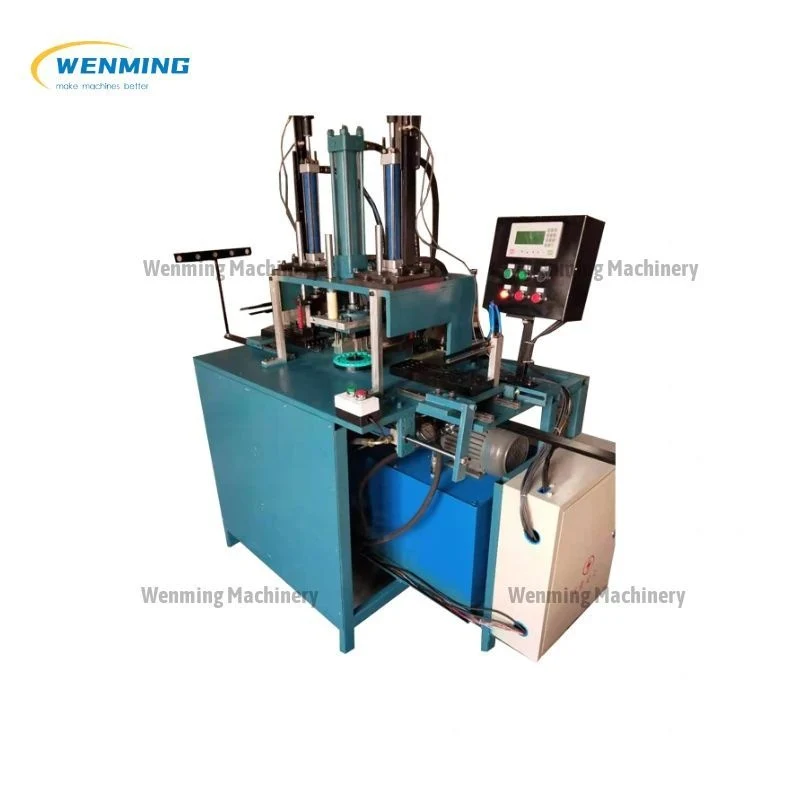

3.PIctures of Mop Making Machine:
